5094-IA16 and 5094-IA16XT Digital 16-channel 120V AC Input Modules
This figure shows a wiring diagram for the 5094-IA16 and 5094-IA16XT modules. You must connect a 120V AC power source to the left L1 and
L2 terminals to provide field-side power.

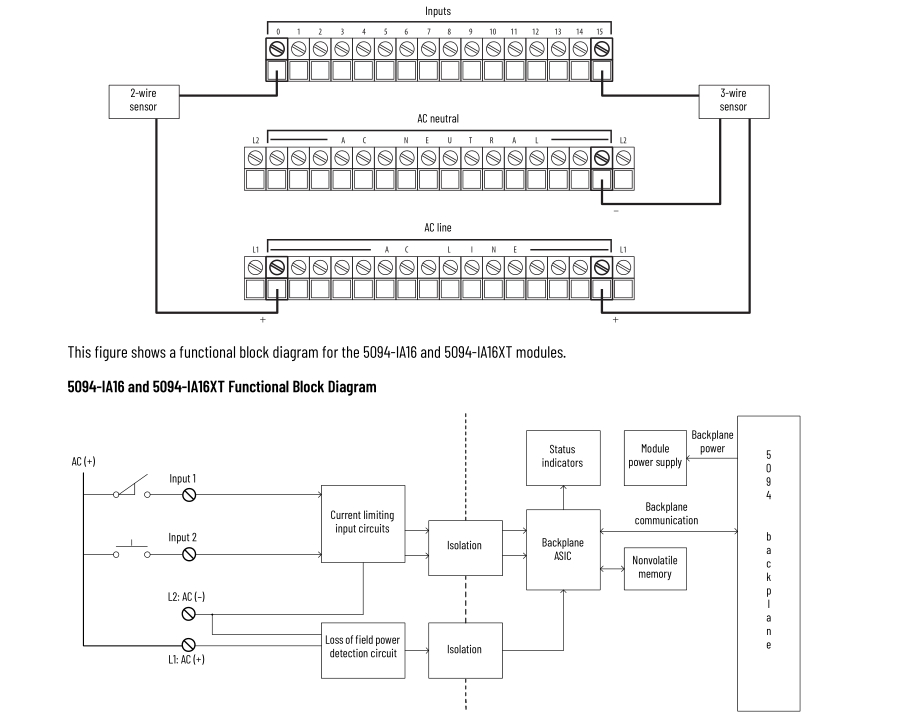

5094-IA16 and 5094-IA16XT Wiring Diagram
