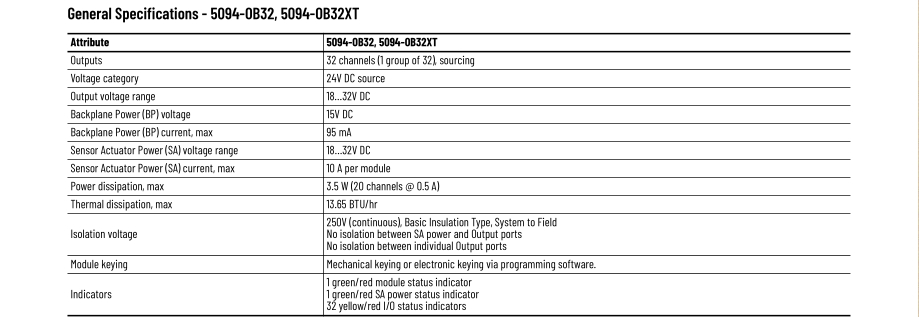

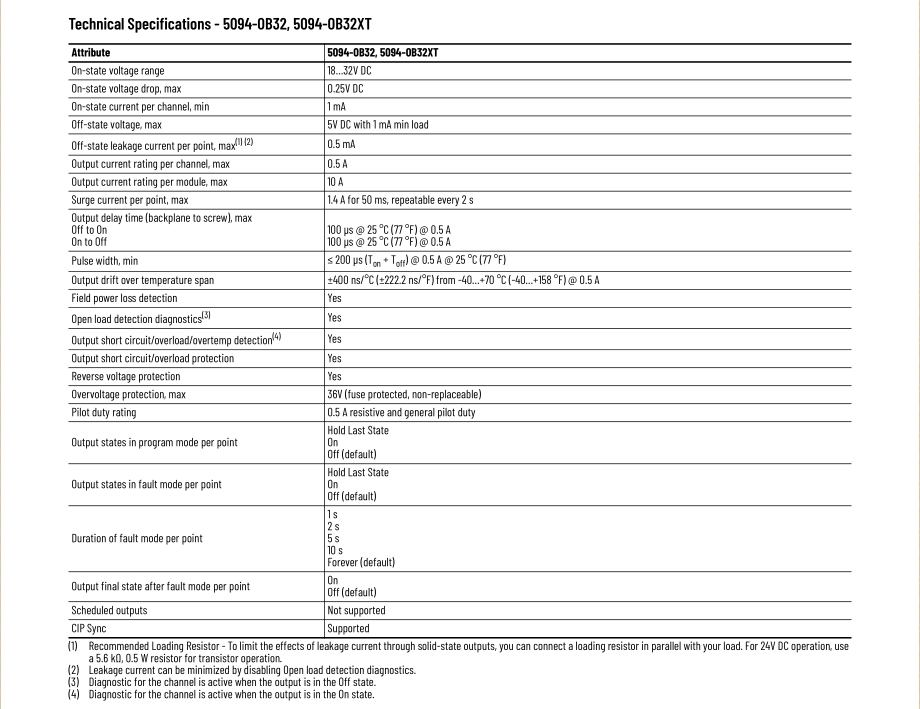

5094-OB32 and 5094-OB32XT Digital 32-point Sourcing Output Modules
This figure shows a wiring diagram for the 5094-OB32 and 5094-OB32XT modules. You must connect a 24V DC power source to the left
SA+/– terminals to provide field-side power.
5094-OB32 and 5094-OB32XT Wiring Diagram。
