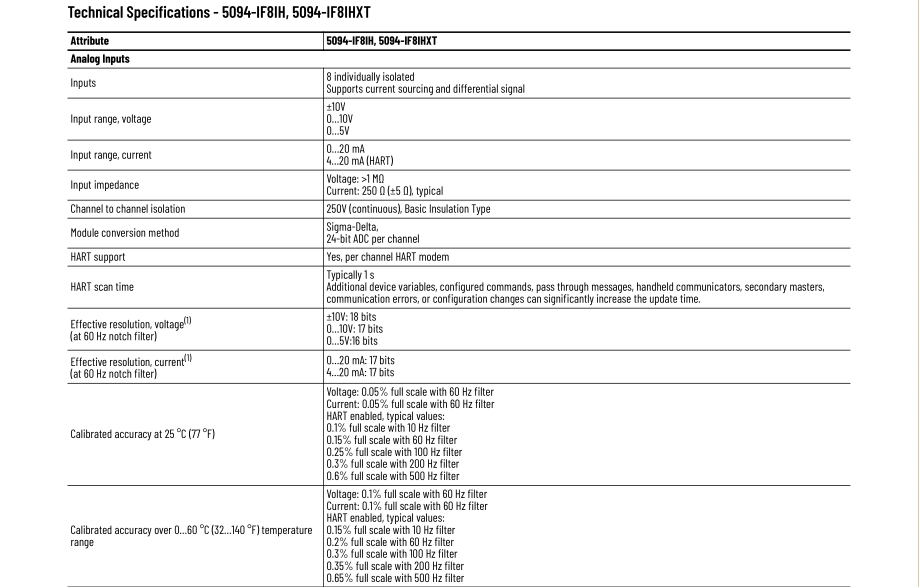

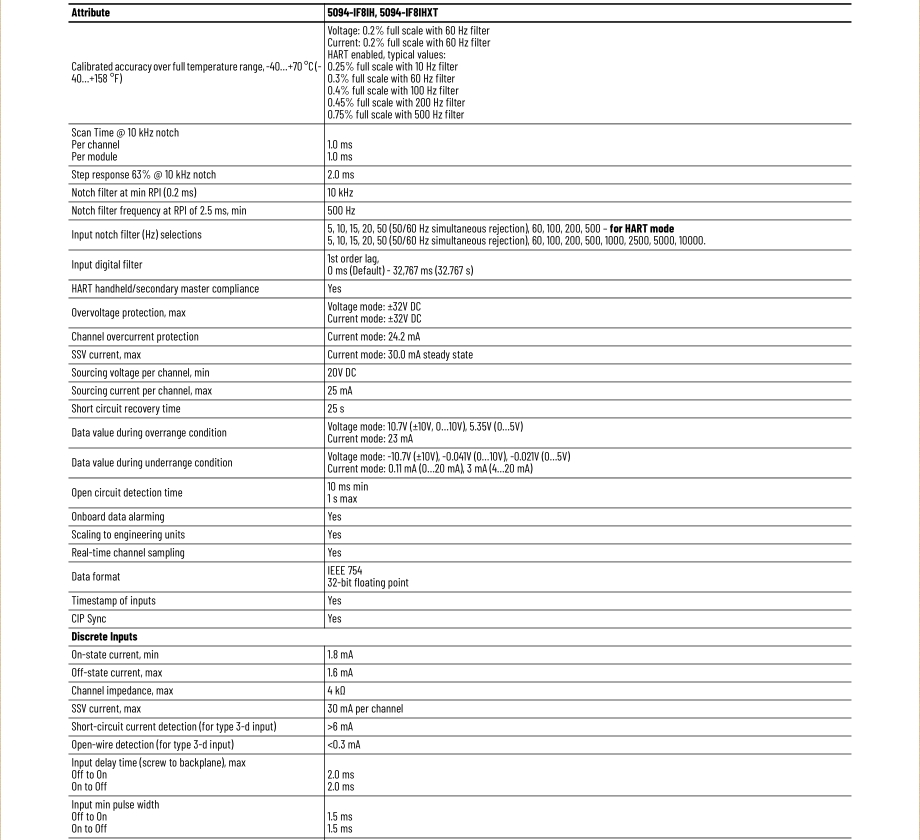

5094-IF8IH and 5094-IF8IHXT Analog 8-channel Isolated Current/Voltage/HART/Digital Input Sensor
Modules
This figure shows a wiring diagram for the 5094-IF8IH and 5094-IF8IHXT modules. You must connect a 24V DC power source to the left
SA+/– terminals to provide field-side power.
5094-IF8IH and 5094-IF8IHXT Wiring Diagram — 2-wire Current/HART Transmitter。
